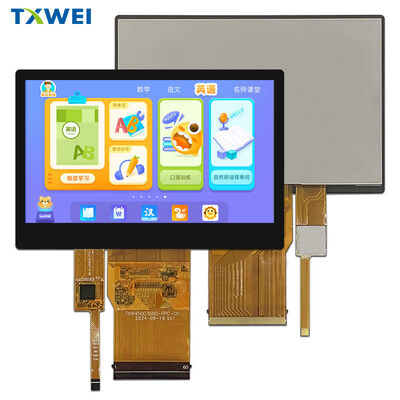

4.5 inch 1920*1080 touch screen LVDS interface landscape game console display educational equipment LCD display

продукты

4.5 inch 1920*1080 touch screen LVDS interface landscape game console display educational equipment LCD display

МОК:	Вести переговоры
цена:	Negotiate
Стандартная упаковка:	Картон
Срок доставки:	16
Метод оплаты:	L/C TT D/P
Пропускная способность:	10000 шт.

Подробная информация

Описание продукта

Подробная информация

Место происхождения

Гуандун

Фирменное наименование

TXWEI

Сертификация

CE ROHS FCC

Номер модели

TXW450036B0-LA

Документ

IC драйвера LCM:

EK79303

Интерфейс LCM:

LVDS 8-битный интерфейс

Количество пикселей:

1920*3RGB ((H) X1080 ((V)

Активная область:

98.5 ((H) * 55.4 ((V)

Механический контурSize:

106,50(Ш) ×70,45(В) ×3,60(Т)

Структура сенсорного экрана:

Сенсорный драйвер IC:

ST1633I

Сенсорный интерфейс:

Число Lcm:

60pin

Лумены градусов:

800nits

Выделить:

4.5 inch LVDS touch screen display

1920x1080 game console LCD

educational equipment capacitive touch panel

Описание продукта

TXW450036B0-LA

4.45" FHD Touch Display

1920×1080 | 800 nits | 72% NTSC | IPS | LVDS | OCA Full Lamination

▎Short

◆ Full HD clarity. High-bright visibility. Premium touch.

The TXW450036B0-LA packs 1920×1080 resolution into a compact 4.45-inch industrial display. 800 nits brightness. 72% NTSC color gamut. G+FF touch with OCA full lamination. Built for gaming, education, medical, and industrial applications that demand visual excellence.

~

▎▎Medium

◈ Full HD in Your Palm

1920 × 1080 resolution. 4.45-inch diagonal. 498 PPI pixel density.

◦ Crisp text. Smooth graphics. No visible pixels. ◦ 16:9 native widescreen. Video content fills the frame. ◦ Gaming interfaces render sharp. Medical imaging shows detail. Educational content reads clear.

◈ Color That Performs

72% NTSC color gamut. IPS full-viewing-angle technology.

◦ Vibrant hues. Accurate reproduction. ◦ 178° viewing freedom. Any angle. Any position. ◦ Color consistency across the display surface.

◈ Brightness for Real Environments

800 nits typical brightness.

◦ Indoor clarity with headroom. ◦ Shaded outdoor visibility. ◦ Ambient light adaptation.

Not sun-facing outdoor rated. Powerful for demanding indoor and semi-outdoor applications.

◈ Touch, Elevated

G+FF structure. ST1633I controller. I²C interface.

◦ Responsive capacitive touch. ◦ OCA full lamination. Zero air gap. ◦ Enhanced contrast. No parallax. No condensation.

Asahi tempered glass cover. Scratch resistance. Impact protection. Optical clarity.

~ ~

▎▎▎Long

◇ The Visual Engine

1920 × 1080 pixels spread across 98.5 × 55.4 millimeters of active display area.

0.0513 millimeter pixel pitch. RGB stripe arrangement. Fine enough for detailed imagery. Dense enough for crisp typography.

EK79303 driver IC manages the TFT active matrix. Advanced timing control. Stable frame rendering. LVDS 8-bit interface on 60 pins. High-speed differential signaling. Low electromagnetic interference. Reliable data transmission for high-resolution content.

◦ 106.50 × 70.45 × 3.60 millimeter mechanical envelope. ◦ 3.60 millimeters including touch stack and cover glass. ◦ Compact for the resolution and brightness class.

◇ The Backlight System

18-LED array. 16.8 to 19.2 volt drive. 60 milliampere current.

Engineered for brightness and longevity. 800 nits sustained output. PWM dimming support. Adapt to ambient conditions. Extend operational life. Reduce power consumption for thermal management.

High-bright architecture without excessive thermal load. Balanced for continuous operation in enclosed spaces.

◇ Touch & Optical Stack

G+FF Construction

Glass cover lens. Film-film sensor layers. Optimized for sensitivity and durability.

ST1633I Controller

Industry-standard capacitive touch IC. I²C communication protocol. Multi-touch capable. Gesture recognition support. Robust firmware ecosystem.

OCA Full Lamination

Optically Clear Adhesive bonding. Display, touch sensor, and cover glass as single optical unit.

◦ Eliminates internal reflections from air gaps. ◦ Enhances perceived contrast and color saturation. ◦ Prevents condensation between layers. ◦ Improves structural integrity and impact resistance.

Asahi Tempered Glass Cover

Premium Japanese glass substrate. Chemical strengthening process.

◦ Scratch resistance for daily use. ◦ Impact protection for industrial environments. ◦ Optical clarity for un compromised image quality.

◇ Environmental & Reliability

Operating temperature: -20°C to +70°C. Ninety degrees of operational range.

Cold startup in uncontrolled environments. Continuous stability in thermally challenging installations. No performance degradation at temperature extremes.

Storage tolerance: -30°C to +80°C. Shipping. Warehousing. Seasonal inventory. Survives uncontrolled conditions without damage.

Normally black display mode. Dark backgrounds for power efficiency. Enhanced contrast for readability. Reduced eye strain for extended use.

◇ Manufacturing Excellence

TXW Display. Shenzhen. Vertical integration.

In-house LCD module production. In-house touch integration. In-house optical lamination. Direct quality control at every process step.

99.7% outgoing quality rate. Measured. Sustained. Verified.

◦ Incoming material inspection. ◦ In-process optical and electrical testing. ◦ Final functional verification. ◦ Traceability documentation.

Technical support team. Direct engineering access. Application guidance. Integration assistance. After-sales service that resolves.

◇ Application Landscapes

◊ Gaming & Entertainment

Handheld gaming devices. Portable consoles. Arcade interfaces. Betting terminals.

Full HD resolution renders game worlds sharp. 800 nits brightness cuts through ambient venue lighting. Fast touch response keeps players engaged. OCA lamination eliminates distractions from internal reflections. Tempered glass survives intense use.

◦ Immersive visuals. Responsive controls. Durability for commercial deployment.

~

◊ Educational Technology

Interactive learning devices. Student tablets. Classroom displays. STEM equipment.

1920×1080 shows educational content in detail. 72% NTSC displays vibrant diagrams and media. Wide viewing angle accommodates collaborative learning positions. G+FF touch supports stylus and finger input for writing and drawing. Industrial temperature range survives classroom and outdoor field trip conditions.

◦ Engaging content. Reliable interaction. Long service life.

~

◊ Industrial Security & Monitoring

Access control panels. Surveillance monitors. Security system interfaces. Industrial tablets.

High brightness readable in varied lighting conditions. Full lamination prevents condensation in changing environments. Tempered glass withstands physical impact. Wide temperature range operates in uncontrolled installations. LVDS interface supports long cable runs in distributed systems.

◦ Continuous monitoring. Reliable access. Rugged dependability.

~

◊ Medical & Healthcare

Portable diagnostic devices. Patient monitoring systems. Surgical equipment interfaces. Clinical tablets.

Full HD displays medical imagery with clarity. Accurate color gamut supports tissue and fluid identification. OCA lamination enables cleaning and disinfection without moisture ingress. Tempered glass survives drops and impacts. Long-term availability supports medical certification and product lifecycle requirements.

◦ Diagnostic confidence. Hygienic operation. Regulatory compliance.

~

◊ Vehicle & Transportation

In-car infotainment. Fleet management terminals. Marine displays. Agricultural machinery interfaces.

800 nits visible in shaded cabins and open vehicles. Wide viewing angle accommodates driver and passenger positions. G+FF touch operates with light gloves. Wide temperature range handles uncontrolled vehicle environments. OCA bonding prevents fogging from humidity and temperature swings.

◦ Driver information. Passenger entertainment. Operational control.
