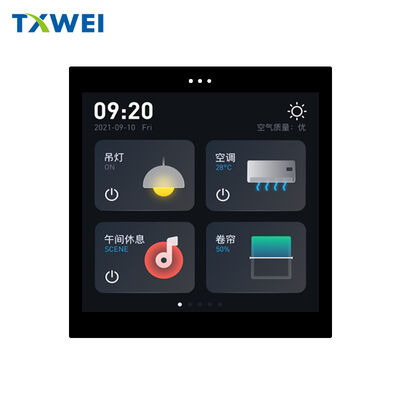

4.2-inch LCD display, 4-inch square screen, smart home MIPI interface, 720*672 resolution, 86 switches

продукты

4.2-inch LCD display, 4-inch square screen, smart home MIPI interface, 720*672 resolution, 86 switches

МОК:	1
цена:	Подлежит обсуждению
Срок доставки:	7-16 дней
Метод оплаты:	Л/К, Д/А, Д/П, Т/Т
Пропускная способность:	10000 шт.

Подробная информация

Описание продукта

Подробная информация

Место происхождения

Шэньчжэнь

Фирменное наименование

TXWEI

Сертификация

CE FCC ROHS

Номер модели

TXW420001B0-TC01

Документ

Количество пикселей:

720*672

Направление просмотра:

Отображать интерфейс:

Яркость:

300 нит

Активная область:

77,98*72,78

Размер контура:

87,1*90,6*3,35 мм

Рабочая температура:

-20+70 ℃

Температура хранения:

-30+80°C

Количество контактов:

40PIN

Сенсорная технология:

Сенсорный интерфейс:

Прикоснуться к IC:

GT911

Выделить:

4.2-inch TFT LCD display with MIPI interface

4-inch square TFT LCD screen 720x672 resolution

smart home TFT LCD display with 86 switches

Описание продукта

TXW420001B0-TC: 4.2” TFT LCD+CTP Module — Where Precision Meets Durability

From industrial control to consumer electronics, the demand for integrated display-touch solutions that deliver clarity, responsiveness, and resilience is non-negotiable. Shenzhen Tianxianwei Technology Co., Ltd. introduces the TXW420001B0-TC — a 4.2-inch standard LCD module that combines a high-performance TFT display with a capacitive touch panel (CTP). Engineered with IPS technology, advanced driver ICs, and a rugged design, this module is built to elevate product experiences across diverse applications.

Key Product Overview

Basic Information	Details
Model Number	TXW420001B0-TC
Product Type	4.2” TFT LCD + CTP Integrated Module
Core Configuration	TFT PANNEL + IC + FPC + BL + CTP
Compliance	Lead-Free Materials & Processing
Manufacturer	Shenzhen Tianxianwei Technology Co., Ltd.

Core Features at a Glance

Visual Performance

Display Technology: IPS Type LCD (Normally Black)
Resolution: 720×RGB×672 Dots (16.7 Million Colors, Software-Selectable)
Viewing Angles: 70-80° (All Clock Directions, CR>10)
Contrast Ratio: Typ. 1500:1 (0° Viewing Angle)
Backlight: Edge-Lighting with 12 White LEDs (300 cd/m² Luminance)

Touch Capabilities

Touch Structure: G+FF Capacitive Touch Panel
Touch Driver IC: GT911
Touch Interface: I2C (Low Latency, Seamless Integration)

Hardware & Dimensions

Display Driver IC: ST7703I
Display Interface: 4-Lane MIPI
Active Area: 77.98(H) × 72.78(V) mm
- LCM: 81.38(W) × 79.68(H) × 2.05(T) mm
- LCM+CTP: 86.00(W) × 89.00(H) × 3.35(T) mm
- Module Size:
Pixel Pitch: 0.0361(H) × 0.1083(V) mm

Environmental Resilience

Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C
Humidity Tolerance: 20% ~ 90% RH (Operating/Storage)
LED Lifespan: 30,000 Hours (Brightness Retains 50% of Original)

Electrical Specifications

Supply Voltage: VDD (3.0-3.3V), VDDIO (1.8-3.3V), CTP_VCC (2.8-3.3V)
Backlight Forward Voltage: 16.8-19.2V
Backlight Forward Current: Typ. 40mA

Why Choose the TXW420001B0-TC?

1. Superior Visual & Touch Synergy

The IPS display delivers consistent color accuracy and wide viewing angles, ensuring clear visibility from any position — critical for shared devices or mounted applications. Paired with the GT911 touch IC and G+FF structure, the module offers responsive, precise touch interaction, supporting intuitive gestures and fast data input.

2. Seamless Integration

Equipped with a 4-lane MIPI interface for the display and I2C for touch, the module ensures high-speed data transmission and compatibility with mainstream host processors. Its compact, slim profile (3.35mm max thickness for LCM+CTP) fits easily into tight device designs, reducing engineering complexity for manufacturers.

3. Rugged & Reliable

Rigorously tested for extreme conditions, the module withstands high/low temperatures, humidity, and thermal shock (10 cycles of -20°C/30min ~ +70°C/30min). The lead-free design aligns with global environmental standards, while the 30,000-hour LED lifespan minimizes maintenance costs for end users.

4. Versatile Application Potential

Ideal for:

Industrial HMI (Human-Machine Interface)
Portable Medical Monitors
Handheld Controllers & Smart Terminals
In-Vehicle Secondary Displays
IoT Devices & Wearable Tech
Consumer Electronics (Compact Navigation, Mini Smart Displays) The TXW420001B0-TC is more than a display module — it’s a reliable, high-performance solution designed to empower your products. Whether you’re building industrial equipment or consumer tech, this module delivers the precision, durability, and integration flexibility you need to stand out in the market.
