8-inch LCD screen with resolution of 1200*1920, MIPI IPS technology, suitable for security display and cash register display panel

продукты

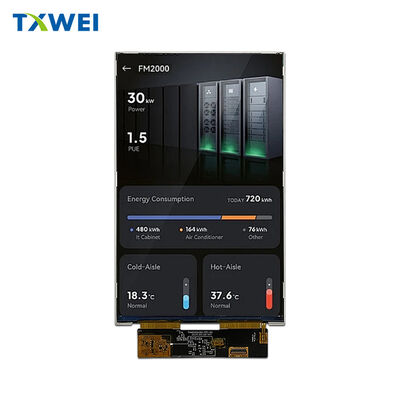

8-inch LCD screen with resolution of 1200*1920, MIPI IPS technology, suitable for security display and cash register display panel

МОК:	1
цена:	Подлежит обсуждению
Срок доставки:	7-16 дней
Метод оплаты:	Л/К, Д/А, Д/П, Т/Т
Пропускная способность:	10000 шт.

Подробная информация

Описание продукта

Подробная информация

Место происхождения

Шэньчжэнь

Фирменное наименование

TXWEI

Сертификация

CE FCC ROHS

Номер модели

TXW800042B0

Документ

Количество пикселей:

1200*1920

Направление просмотра:

Отображать интерфейс:

MIPI 4 полоса

Яркость:

500 нит

Активная область:

107.64*172.22

Размер контура:

114,6*184,1*2,8 мм

Рабочая температура:

-10+60°С

Температура хранения:

-20+70 ℃

Количество контактов:

31pin

Выделить:

8-inch MIPI IPS LCD screen

1200x1920 resolution TFT display

security cash register LCD panel

Описание продукта

TXW800042B0
8" 1200 × 1920 IPS MIPI LCD – 500 nits – 2.8 mm Thin
The Panel That Lets You Design Thinner, Cooler, Sooner.

1. Thinner Than a Pencil

2.8 mm means you can hit a 10 mm IP65 enclosure without milling deep pockets.
Your device stays slim, light, and retail-sexy.

2. Sharper Than Reality

283 PPI – every icon, ECG trace or QR code looks laser-printed.
No more “fuzzy-font” complaints from users.

3. Sun-Friendly Glow

500 nits IPS cuts through greenhouse LEDs, warehouse spots, or crane-cab glare.
No premium 1 000-nits price tag.

4. Cold Mornings Included

–10 °C start-up verified; no heater foil, no delay.
Good for Nordic construction sites or high-altitude drones.

5. Touch Freedom

Pure display – add your own PCAP, resistive, or leave it bare.
You control cost, thickness, and surface material (anti-microbial, anti-vandal, 6 mm glass – your call).

6. One-Cable Wonder

31-pin MIPI DSI 4-lane snaps into RK3566, i.MX8, MTK, Qualcomm.
Ditch the LVDS-HDMI bridge and save 3 USD + 1 W.

7. Stock Today, Line Tomorrow

<50 pcs ship in 24 h; 1 k pcs in 7 days.
Keep your Kickstarter or medical certification timeline intact.

Snapshot Specs8" 1200 × 1920 IPS – 107.64 × 172.22 mm active
500 nits – 800:1 – 85° full angle
2.8 mm profile – 95 g
–10 °C ~ +60 °C op. – –20 °C ~ +70 °C storage
MIPI DSI 4-lane – 1.9 W max
ESD ±15 kV air – CE/FCC/RoHS ready

TXW800042B0
8" 1200×1920 IPS MIPI LCD | 500 nits | 2.8 mm Thin
Nine Real-World Jobs It Does Right Now

1. Construction-Zone Tower CraneMounted inside a 12 mm steel dashboard—portrait 1200×1920 shows full boom-angle graphic and wind-speed alerts.
-10 °C dawn start-up in Stockholm winter, +60 °C midday in Dubai—panel never ghosts.
2. Underground Mining Robot950 m below surface, zero natural light. 500 nits IPS keeps video-feed crisp; 2.8 mm thickness saves precious front-armor space for explosion-proof glass.
3. Greenhouse LED ControllerBathed in 450 nm blue + 660 nm red for 16 h/day. High contrast blocks colour wash-out; wide temp spec survives 45 °C, 90 % RH peak.
4. Smart Parcel & Food LockersRain-soaked users, gloves, disinfectant spray—no touch layer means you can laminate an anti-microbial cover lens or keep old-school keypad UI and still hit retail price point.
5. Solar-Powered EV-Charging KioskSun-facing, battery-buffered. 500 nits readable under noon glare; MIPI sips <200 mW when showing QR code, stretching solar reserve.
6. Portable Ultrasound Scope283 PPI renders vein boundaries without jaggies; 2.8 mm panel keeps total probe weight <400 g for one-hand operation during field triage.
7. e-Reader for Industrial ManualsExplosion-proof ATEX tablet needs thin, cool-running screen. No touch = fewer sparks; IPS gives 170° viewing for team huddles around schematic PDFs.
8. Airport Self-Service GateEmbedded in 8 mm stainless bezel. Portrait mode scans boarding-pass barcode at 30 cm distance; –10 °C start after overnight hangar chill.
9. Marine Engine Room DisplaySalt fog, 24 h vibration, 50 °C ambient. Panel mates with sealed PCAP overlay; slim profile allows nitrogen-purged front case only 15 mm thick.
