13.3-inch LCD display screen 1920*1080 with EDP interface drone display outdoor1000 brightness

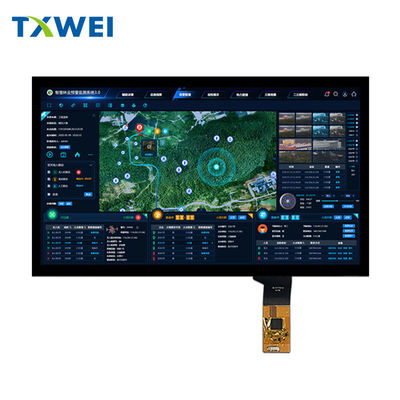

TXW133016A0-LZ : A 13.3-inch outdoor high brightness touch screen designed for harsh environments
In drone countermeasures, medical emergencies, industrial sites, and outdoor express delivery cabinets exposed to sunlight and rain, traditional screens often become system "shortcomings" due to insufficient brightness, touch failure, or poor environmental tolerance. The launch of TXW133016A0-LZ is aimed at addressing these pain points - it is not only a 13.3-inch high-definition screen with 1000 nits ultra-high brightness, but also a complete set of "display+touch" integrated solutions that have been rigorously tested in harsh environments.
Hardcore parameters, visible at a glance
13.3-inch IPS panel, 1920 × 1080 resolution, 178 ° full viewing angle without color distortion
1000 nits ultra-high brightness, still clear and readable under direct sunlight at noon
Working temperature range of -20 ℃ to+70 ℃, storage temperature range of -30 ℃ to+80 ℃, suitable for high-altitude, desert, and extremely cold warehouses
7.85mm ultra-thin body, 308 × 183.45mm external dimensions, matching compact device space
EDP 30 Pin high-speed display interface, compatible with mainstream embedded motherboards, can handle power and signal with one wire

G+G structure capacitive touch, precise operation even with gloves
Adopting G+G (Glass+Glass) technology, the surface tempered glass has a hardness of 7H and is scratch resistant and drop resistant; Built in ILI2511 touch chip, plug and play I ² C interface, supports 10 finger touch and 5mm thick glove mode. In rain, snow, oil stains, and high salt spray environments, it can still ensure a smooth experience of sliding, zooming, and dragging.
Five major application scenarios, all handled on one screen
Drone countermeasure: Portable jamming devices need to display radar echoes and video streams in real-time under strong outdoor light, with a brightness of 1000 nits and IPS wide viewing angle for operators to "look up and see".
Outdoor highlight display: Electronic bus stop signs, charging station advertising machines, no need for additional sunshades under sunlight, reducing overall machine costs.
Medical equipment: ambulance monitor, mobile ultrasound, earthquake resistant and temperature resistant, ensuring online disinfection from -20 ℃ outdoor in winter to+70 ℃ disinfection environment.
Industrial automation: Factory production line signage, AGV vehicle terminals, 7.85mm ultra-thin body for easy embedding into various cabinets and brackets.
Logistics express cabinet: Direct sunlight in summer and cold condensation in winter, TXW133016A0-LZ still has sensitive touch control, reducing after-sales maintenance.
Easy integration, provincial development
Standard EDP interface, compatible with mainstream platforms such as RK, NXP, Intel Core/Atom, etc
Provide touch driver packages for Linux, Android, and Windows to shorten the development cycle
Before leaving the factory, it undergoes a 48 hour 60 ℃/90% RH aging test and can be put into mass production immediately upon receipt

TXW133016A0-LZ is not simply about "piling up" brightness, but customizing the entire chain from display, touch, structure, electrical to environmental reliability for industry scenarios. If you are looking for a high-performance screen that is "not picky about the environment" for outdoor, industrial, or medical projects, it is worth evaluating immediately.
